Shower screens
Zenith Wall +L +W
Zenith Wall +L +W consists of a wall-mounted fixed wall Zenith Wall with additionally attached fixed walls “+L” and “+W”. The sealing on the joint of a shower tray / tiles and the fixed wall is secured with an aluminum U-profile. With this product, you can create an extremely practical and aesthetically impressive “walk-in” space in your bathroom.
Request a quote for this product from our retail representatives
Sales network-
Made to measure
Learn more -
Free anti-scale coating
Learn more
Details
Zenith Wall +L +W consists of a wall-mounted fixed wall Zenith Wall with additionally attached fixed walls “+L” and “+W”. The sealing on the joint of a shower tray / tiles and the fixed wall is secured with an aluminum U-profile. With this product, you can create an extremely practical and aesthetically impressive “walk-in” space in your bathroom. Since there are no doors, hinges and wheels, maintenance is extremely simple. The additional fixed walls "+L" and "+W" are ordered exclusively as an addition to the Zenith Wall shower screen.
| Intended use |
Shower trays / ceramic tiles *
|
|---|---|
| Orientation |
Universal
|
| Glass thickness |
Tempered glass 8 mm
|
| Glass type |
|
| Installation base |
|
| Shower screen configuration |
Installation on one wall
|
| Door opening type |
Walk - in (Stand-alone fixed wall)
|
| Height |
200 cm
|
Glass type

Transparent

Satinated

Gray
Dimensions
| Width (cm) | Min. installation width (cm) |
|---|---|
| 15 | 15 |
| 20 | 20 |
| 30 | 30 |
| 40 | 40 |
| 50 | 50 |
| 60 | 60 |
| Width (cm) | Min. installation width (cm) | Max. installation width (cm) |
|---|---|---|
| 90 | 89 | 90.5 |
| 100 | 99 | 100.5 |
| 110 | 109 | 110.5 |
| 120 | 119 | 120.5 |
| 140 | 139 | 140.5 |
| 150 | 149 | 150.5 |
| 160 | 159 | 160.5 |
| 170 | 169 | 170.5 |
| 180 | 179 | 180.5 |
| 200 | 199 | 200.5 |
| Width (cm) | Min. installation width (cm) | Max. installation width (cm) |
|---|---|---|
| 55 | 54 | 55.5 |
| 60 | 59 | 60.5 |
| 70 | 69 | 70.5 |
| 80 | 79 | 80.5 |
| 90 | 89 | 90.5 |
| 100 | 99 | 100.5 |
Colors
Accessories
-
Free anti-scale coating
This screen is treated free of charge with anti-lime coating, which makes cleaning and maintenance easier. The protective nano coating for glass and ceramics prevents the build-up of limescale and dirt. The coating creates smooth hydrophobic surfaces that have less contact with dirt particles and…
Learn more
Features
-
Made to measure
ZENITH Wall +L +W Minimum Maximum Width of screen 150 mm 2500 mm Width of additional fixed wall "+L" 150 mm 600 mm Width of additional fixed wall "+W" 150 mm 2500 mm Height (H) up to ceiling height When ordering a screen in custom dimensions, it is mandatory to attach a sketch with the desired…
Learn more
Additional equipment
Technical information
Documentation
-
Warranty conditions and user instructions
-

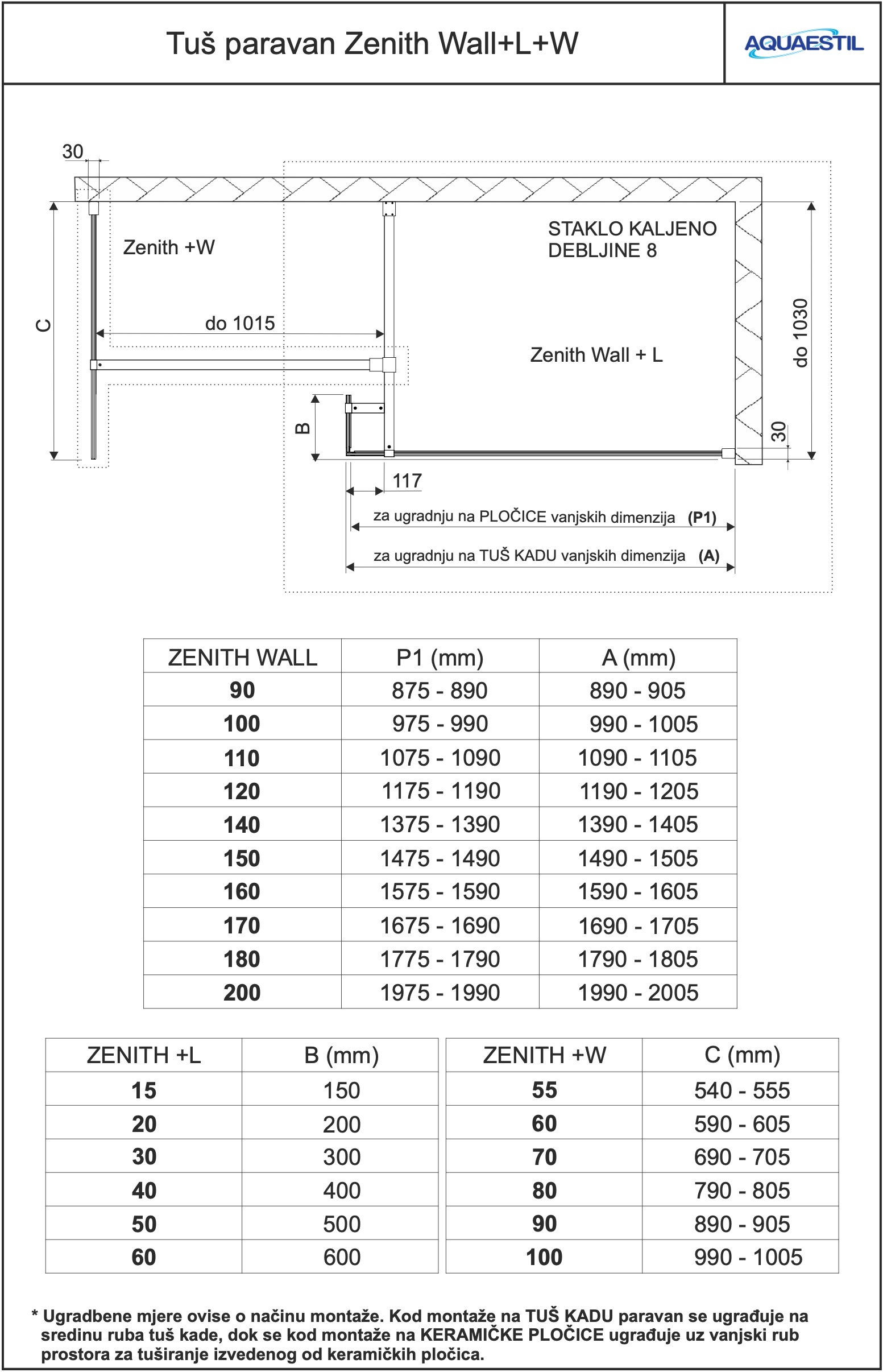

Dimensional sketch
-
RFA - Zenith wall + L + W
-
Installation instructions - shower screen Zenith Wall +L
-
Installation instructions - shower screen Zenith Wall +W
-
IFC - Zenith +L +W
Cleaning and maintenance
The glass surfaces of all Aquaestil shower screens undergo a factory treatment with an anti-limescale coating that provides additional protection against the accumulation of limescale and dirt, making everyday cleaning and maintenance of the shower space easier. This technology involves the application of nanoparticles with components that firmly adhere to the glass surface, repelling other substances such as water, various oils, dirt, insects and limescale residue. Following the treatment, the glass becomes more resistant to friction, and the nanoparticles maintain their effectiveness on the surface for a significant period, without the need for repeated treatment.
The profiles of the shower screens are made of aluminum, anodized in silver or coated with baked powder paint. Anodizing or anodic oxidation is a process that ensures surface protection for aluminum parts. Through this process, aluminum acquires its characteristic metallic color and permanent protection against corrosion, which is crucial in humid conditions such as in bathroom spaces.
Thanks to high-quality manufacturing materials, the need for maintenance is reduced and limited to regular use of conventional non-abrasive cleaning solutions for metal and glass surfaces in the bathroom.
For daily cleaning, we recommend using Aquaestil cleaning solution for acrylic and glass surfaces.
Made to measure
|
ZENITH Wall +L +W |
Minimum |
Maximum |
|
Width of screen |
150 mm |
2500 mm |
|
Width of additional fixed wall "+L" |
150 mm |
600 mm |
|
Width of additional fixed wall "+W" |
150 mm |
2500 mm |
|
Height (H) |
|
up to ceiling height |
- When ordering a screen in custom dimensions, it is mandatory to attach a sketch with the desired measurements.
- If the shower screen is to be placed on tiles, this must be noted when ordering and a sketch with the exact measurements of the shower space must be provided.
- Please check if your requested screen dimensions are in the standard dimensions.
