Shower screens
Atlantis DW+W
Atlantis DW+W is a luxury screen consisting of a fixed wall + door on one side and a fixed wall on the other. Door can be opened inwards and outwards thanks to the special seal. The lift system of the door allows a smooth opening. Due to the very small installation tolerance, this screen model can be ordered only by measure.
Request a quote for this product from our retail representatives
Sales network-
Made to measure
Learn more -
Maximum strength, minimal resistance
Learn more -
Free anti-scale coating
Learn more
Details
| Intended use |
Shower trays / ceramic tiles *
|
|---|---|
| Orientation |
left / right
|
| Glass thickness |
Tempered glass 6/8 mm
|
| Glass type |
Transparent
Learn more
|
| Installation base |
|
| Shower screen configuration |
Corner installation – 1 side with door and 1 fixed wall
|
| Door opening type |
Hinged door
|
| Height |
210 cm
|
Glass type

Transparent
Dimensions
| Width (cm) |
|---|
| 100 |
| 110 |
| 120 |
| 130 |
| 140 |
| 150 |
| 160 |
| 170 |
| 180 |
| 190 |
| 200 |
| Width (cm) |
|---|
| 60 |
| 70 |
| 80 |
| 90 |
| 100 |
| 110 |
| 120 |
Colors
Accessories
-
Free anti-scale coating
This screen is treated free of charge with anti-lime coating, which makes cleaning and maintenance easier. The protective nano coating for glass and ceramics prevents the build-up of limescale and dirt. The coating creates smooth hydrophobic surfaces that have less contact with dirt particles and…
Learn more
Features
-
Made to measure
ATLANTIS DW+W Minimum Maximum DW side width (door) 600 mm 2000 mm W side width (wall) 150 mm 2000 mm Height (H) 2200 mm When ordering a screen in custom dimensions, it is mandatory to attach a sketch with the desired measurements. If the shower screen is to be placed on tiles, this must be noted…
Learn more -
Maximum strength, minimal resistance
By combining the advantages of 8 mm tempered glass for fixed parts and 6 mm for movable parts of the shower screen, Atlantis offers exceptional strength and stability while ensuring remarkable ease of door operation.
Learn more
Door opening animation
The animation shows how the door or the moving part opens on Aquaestil shower cabins and shower screens, so that the functionality of the product is easier to understand. The animation does not show the detailed technical characteristics of the product.
-
Atlantis DW (left) + W (right)
Additional equipment
Technical information
Documentation
-
Warranty conditions and user instructions
-

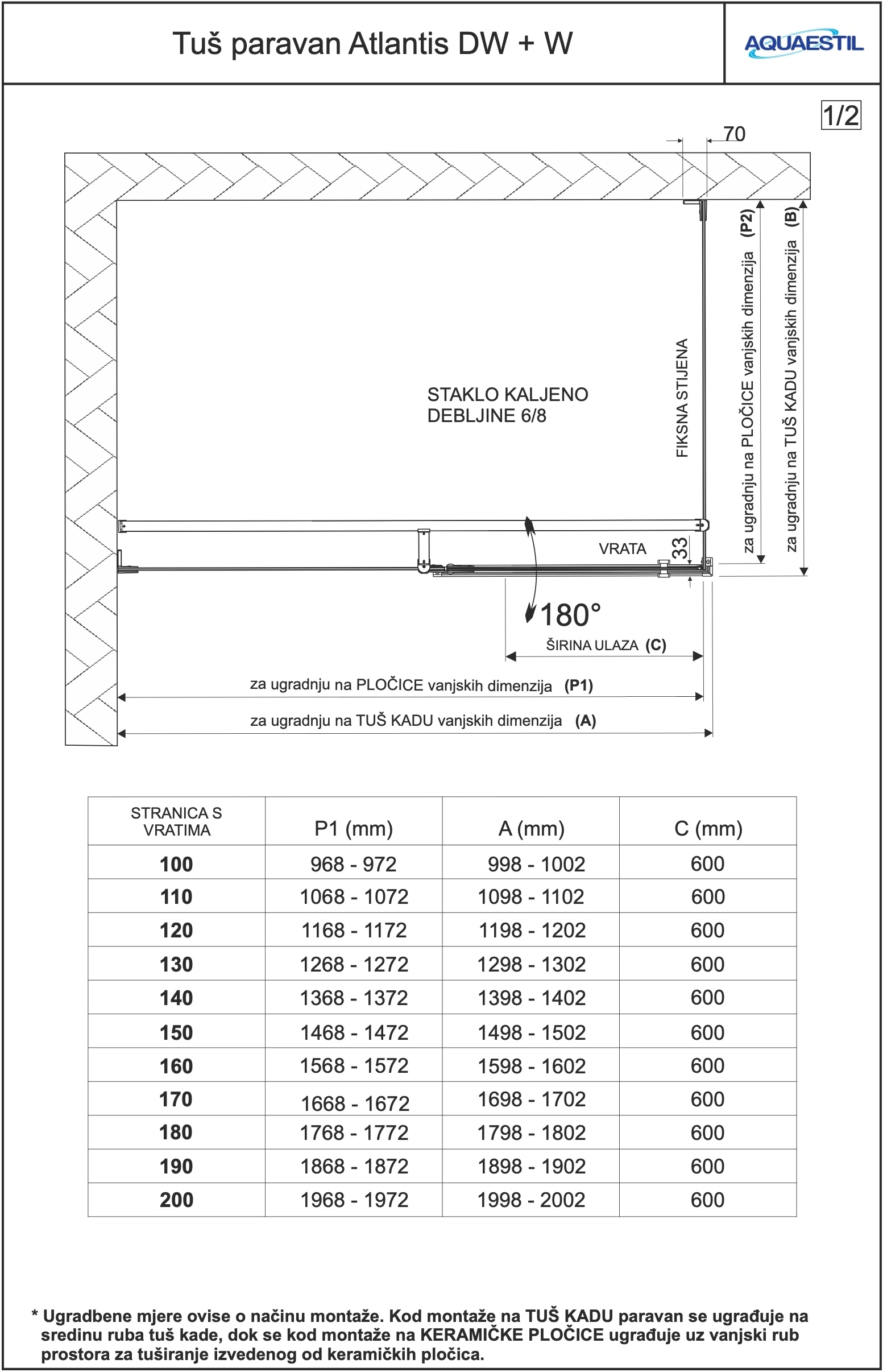

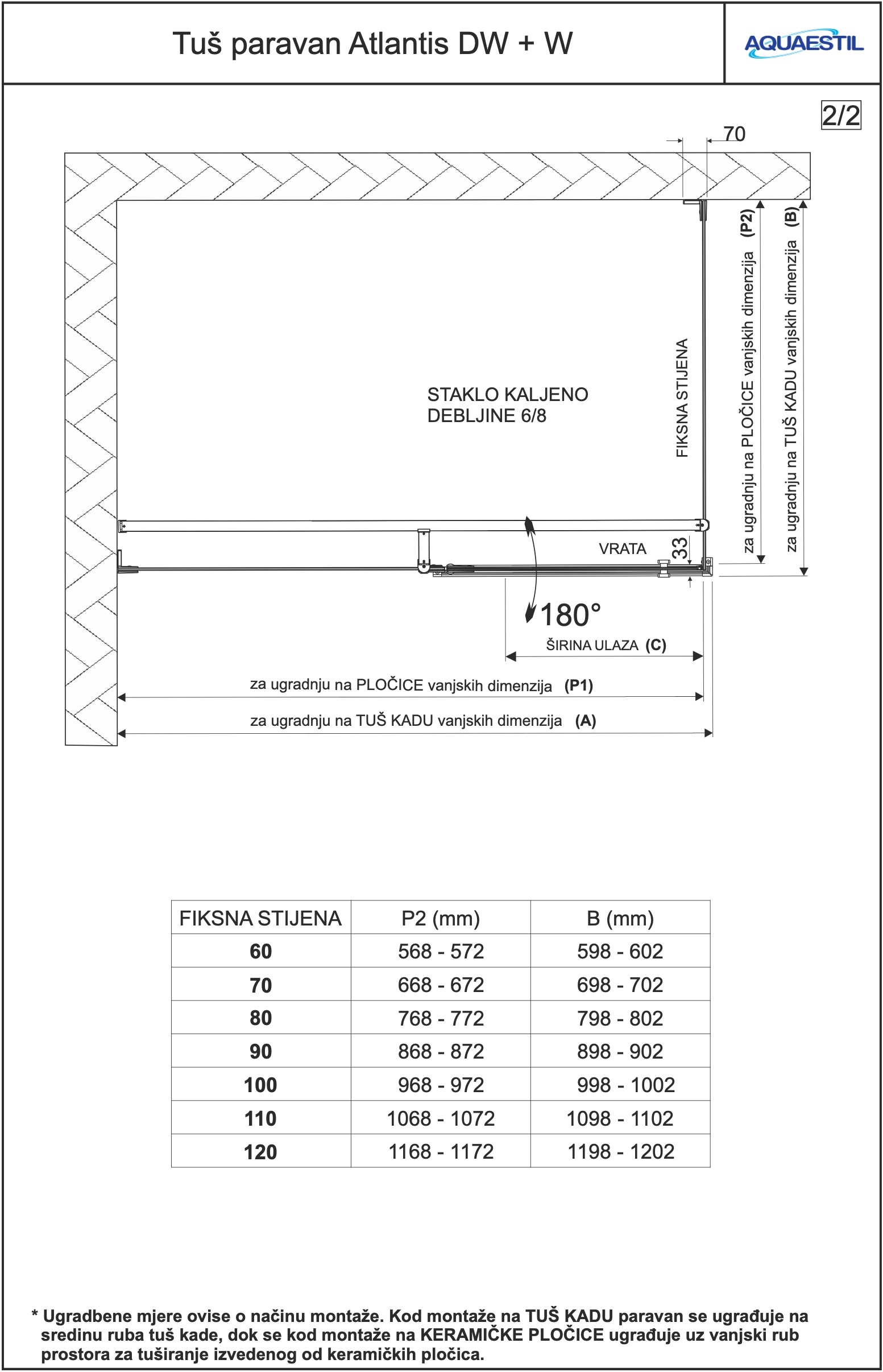

Dimensional sketch
-
Installation instructions - shower screen Atlantis DW+W
Cleaning and maintenance
The glass surfaces of all Aquaestil shower screens undergo a factory treatment with an anti-limescale coating that provides additional protection against the accumulation of limescale and dirt, making everyday cleaning and maintenance of the shower space easier. This technology involves the application of nanoparticles with components that firmly adhere to the glass surface, repelling other substances such as water, various oils, dirt, insects and limescale residue. Following the treatment, the glass becomes more resistant to friction, and the nanoparticles maintain their effectiveness on the surface for a significant period, without the need for repeated treatment.
The profiles of the shower screens are made of aluminum, anodized in silver or coated with baked powder paint. Anodizing or anodic oxidation is a process that ensures surface protection for aluminum parts. Through this process, aluminum acquires its characteristic metallic color and permanent protection against corrosion, which is crucial in humid conditions such as in bathroom spaces.
Thanks to high-quality manufacturing materials, the need for maintenance is reduced and limited to regular use of conventional non-abrasive cleaning solutions for metal and glass surfaces in the bathroom.
For daily cleaning, we recommend using Aquaestil cleaning solution for acrylic and glass surfaces.
Made to measure
|
ATLANTIS DW+W |
Minimum |
Maximum |
|
DW side width (door) |
600 mm |
2000 mm |
|
W side width (wall) |
150 mm |
2000 mm |
|
Height (H) |
|
2200 mm |
- When ordering a screen in custom dimensions, it is mandatory to attach a sketch with the desired measurements.
- If the shower screen is to be placed on tiles, this must be noted when ordering and a sketch with the exact measurements of the shower space must be provided.
- Please check if your requested screen dimensions are in the standard dimensions.
Maximum strength, minimal resistance
By combining the advantages of 8 mm tempered glass for fixed parts and 6 mm for movable parts of the shower screen, Atlantis offers exceptional strength and stability while ensuring remarkable ease of door operation.
